Reactive State

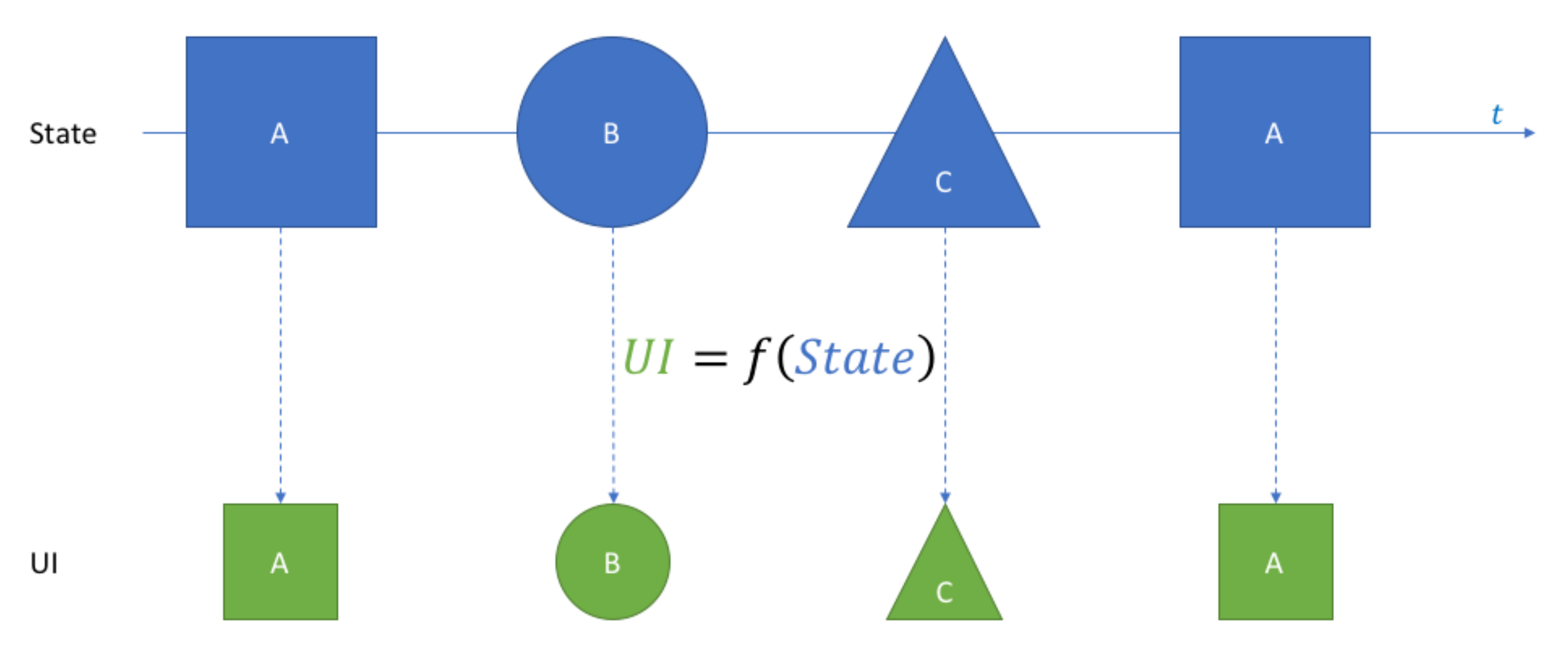

What is a State? 🧐

State changes are produced by

• User Interaction
• Data loaded from Backend
• Component Exchange (Routing)
• Internationalization
• Authorization
• Theming
• ...

Local State Example

export class AppComponent {
  todos: Todo[] = [];

  addTodo(description: string) {
    this.todos.push({ completed: false, description });
  }

  setTodoCompleteState(todo: Todo, completed: boolean) {
    this.todos = this.todos.map(t => {
      if (t.id === todo.id) {
        todo.completed = completed;
      }
      return t;
    });
  }
}



Characteristics

• Component specific
• Angular out-of-the-box
• Influenceable via property and event binding
• Very limited

NgRx Store

Actions

  export class AddTodo implements Action {
    readonly type = ADD_TODO;
    constructor(public payload: any) {}
  }

  export class RemoveTodo implements Action {
    readonly type = REMOVE_TODO;
    constructor(public payload: any) {}
  }



Dispatching Actions

  addTodo(event: Todo) {
    this.store.dispatch(new AddTodo(event));
  }



Reducers

  export function reducer(
    state = initialState, action: TodossAction
  ): TodosState {
    switch (action.type) {
      case ADD_TODO: {
        const todo = action.payload;
        const todos = [...state.todos, todo];
        return { ...state, todos };
      }
    }
    return state;
  }



Selectors

  import { createSelector } from '@ngrx/store';

  interface AppState { feature: FeatureState }

  const getTodos = (state: FeatureState) => state.todos;
  const getFeatureState = (state: AppState) => state.feature;
  const getFeatureStateTodos = createSelector(
    getFeatureState,
    getTodos
  );



Call Selector in Component

  export class TodosComponent implements OnInit {
    todos$: Observable<Todo[]>;

    constructor(private store: Store<TodosState>) {}

    ngOnInit() {
      this.todos$ = this.store.select(getTodos);
    }
  }


Characteristics

• Uniform state changes
• clarity and transparency over the state
• easy to test
• strong influence on architecture
• much additional code

Reactive State

Angular Service Layer

Store Service

Business Service

Adapter Service

Dialog Component(s)

Abstract Store Class

• Parent class of all Store classes
• Provides update logic
• Provides state observable
• Provides selector

Abstract Store Class

export abstract class Store<State extends object> {
  private readonly actionSource: Subject<Action<State>>;
  private readonly stateSource: BehaviorSubject<State>;
  readonly state$: Observable<State>;

  constructor(initialState: State) {
    this.stateSource = new BehaviorSubject<State>(
      initialState
    );
    this.state$ = this.stateSource.asObservable();
    this.actionSource = new Subject<Action<State>>();

    this.actionSource.pipe(
      observeOn(queueScheduler)
    ).subscribe(action => {
      const currentState = this.stateSource.getValue();
      const nextState = action(currentState);
      this.stateSource.next(nextState);
    });
  }

  select<SelectedState>(
    selector: (state: State) => SelectedState
  ): Observable<SelectedState> {
    return this.state$.pipe(
      map(selector),
      map(state => structuredClone(state)),
      distinctUntilObjectChanged()
    );
  }

  update(stateChanger: (state: State) => State) {
    this.actionSource.next(stateChanger);
  }
}


Feature Store Class

  @Injectable({
    providedIn: 'root',
  })
  export class TodoStoreService extends Store<TodoStoreState> {
    constructor() {
      super('TodoStore', { todos: [] });
    }

    addTodo(todo: Todo) {
      this.update(state => ({
        ...state,
        todos: [
          ...state.todos,
          todo
        ],
    }));
  }


Dialog Component

  export class TodoComponent {
    readonly allTodos$: Observable<Todo[]>;

    constructor(
      private todoService: TodoService,
      private todoStore: TodoStoreService
    ) {
      this.allTodos$ = this.todoStore.select(
        state => state.todos
      );
    }

    addTodo(description: string) {
      this.todoService.addTodo(description);
    }
  }


Business Service

  export class TodoService {

    constructor(
      private todoAdapter: TodoAdapterService,
      private todoStore: TodoStoreService
    ) { }

    async addTodo(description: string) {
      const todo = await lastValueFrom(
        this.todoAdapter.addTodo(description)
      );
      this.todoStore.addTodo(todo);
    }
  }


Characteristics

• Uniform state changes
• Fits into the modul's service layer
• No additional dependency
• Modular state
• Customizable

Demo

Similar libraries

• Elf
• Akita Store
• Rx Angular State
• Angular Reactive State
